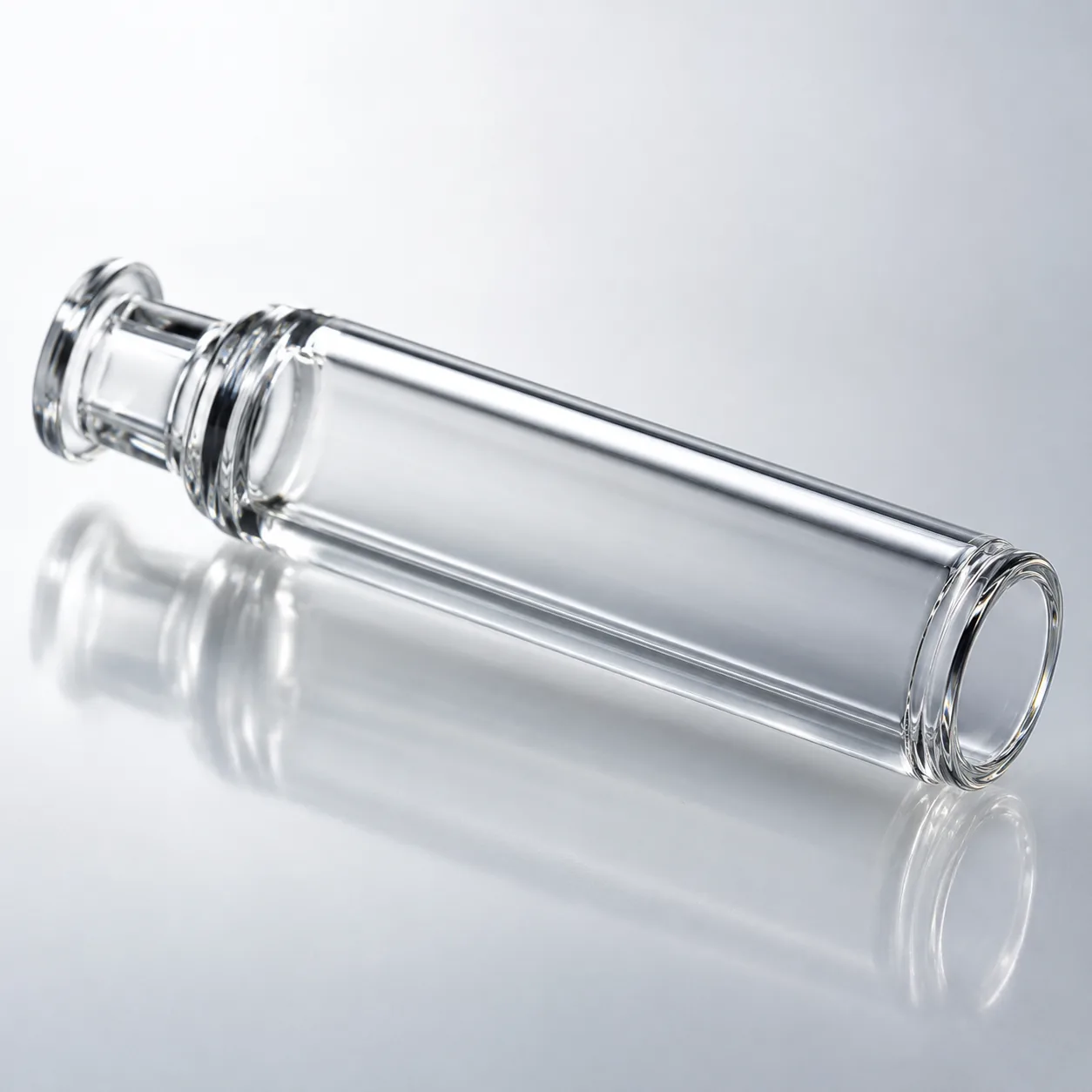

Pharmaceutical Glass Cartridge

Tubular glass cartridges for insulin, dental anesthetic and pen-injector drug-delivery systems, with project-specific dimensions, plunger and seal components selected for the target device.

Product TypeTubular glass cartridge Capacity / Size1.5 ml / 4.8 ml examples* Glass MaterialType I borosilicate glass* Device ApplicationPen injector / Dental anesthetic ComponentsPlunger + aluminum/rubber seal Supply FormatProtective tray / bulk by SKU

Request Quote

Specification & Buying Information

Product Type Tubular glass cartridge

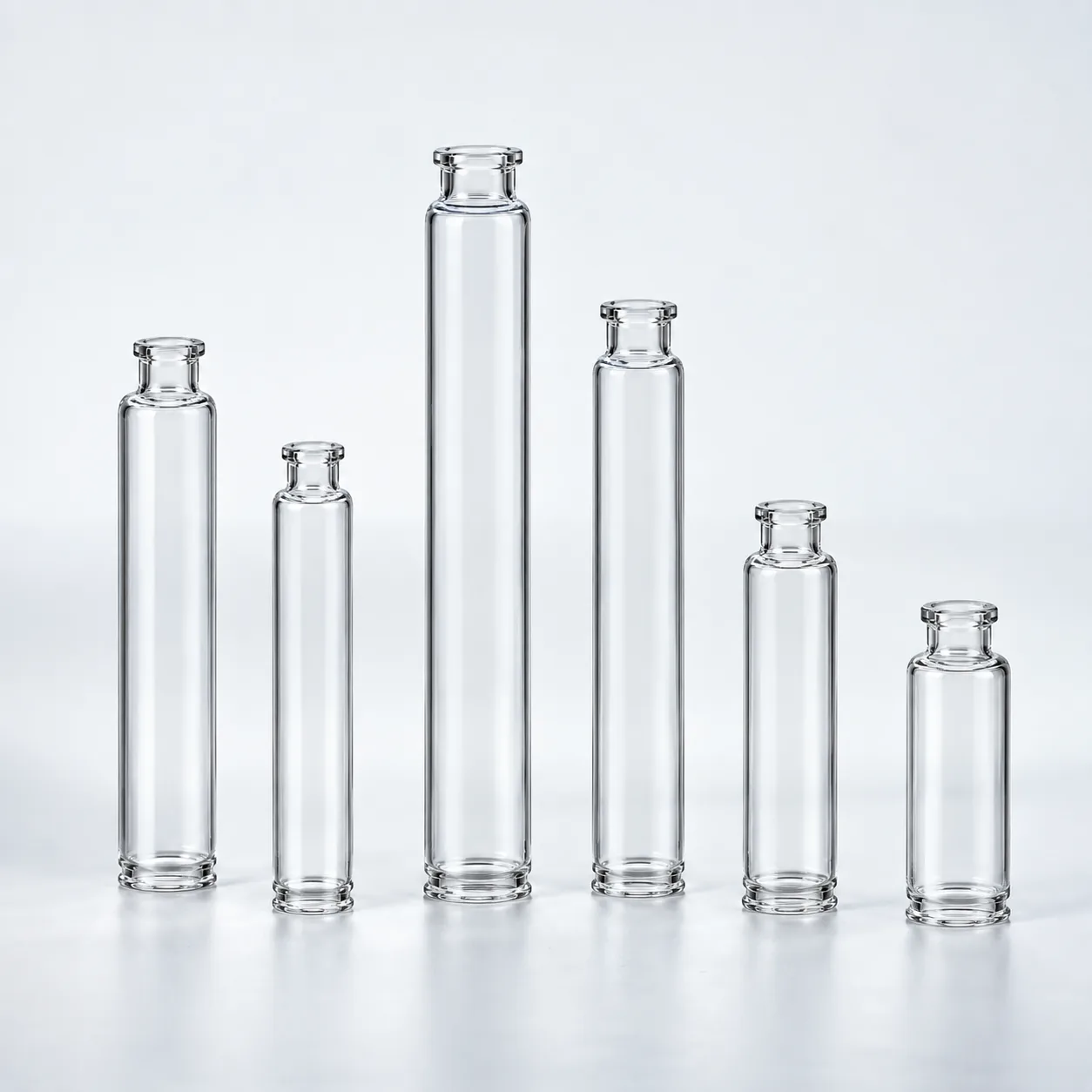

Capacity 1.5 ml / 4.8 ml examples

Glass Type Type I borosilicate glass, SKU supported

Geometry Drawing-controlled cartridge interface

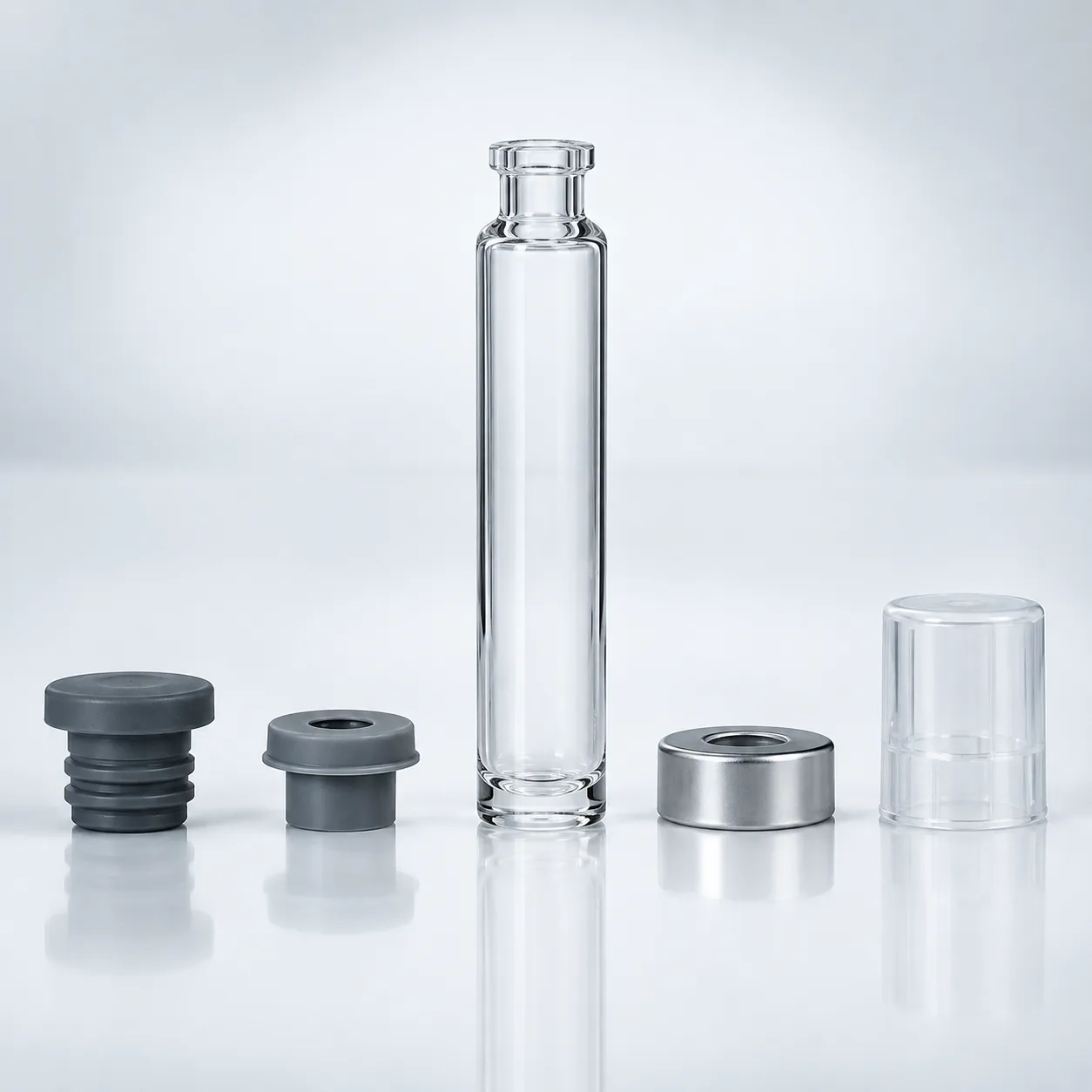

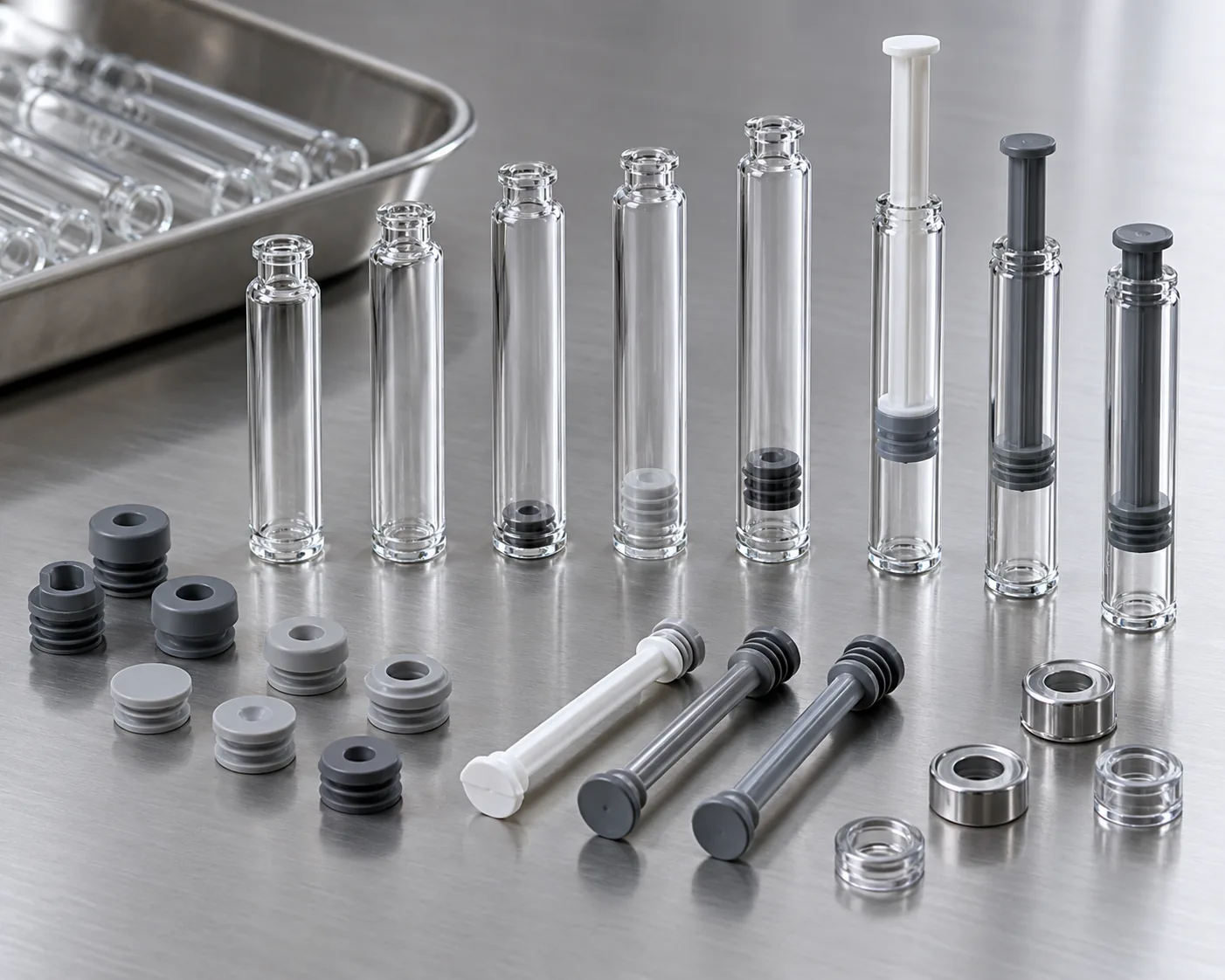

Components Plunger + aluminum/rubber seal system

Application Insulin, dental anesthetic, pen injectors

Documentation ISO 13926-1 where applicable

Quality Checks Dimensions, barrel geometry, seal fit

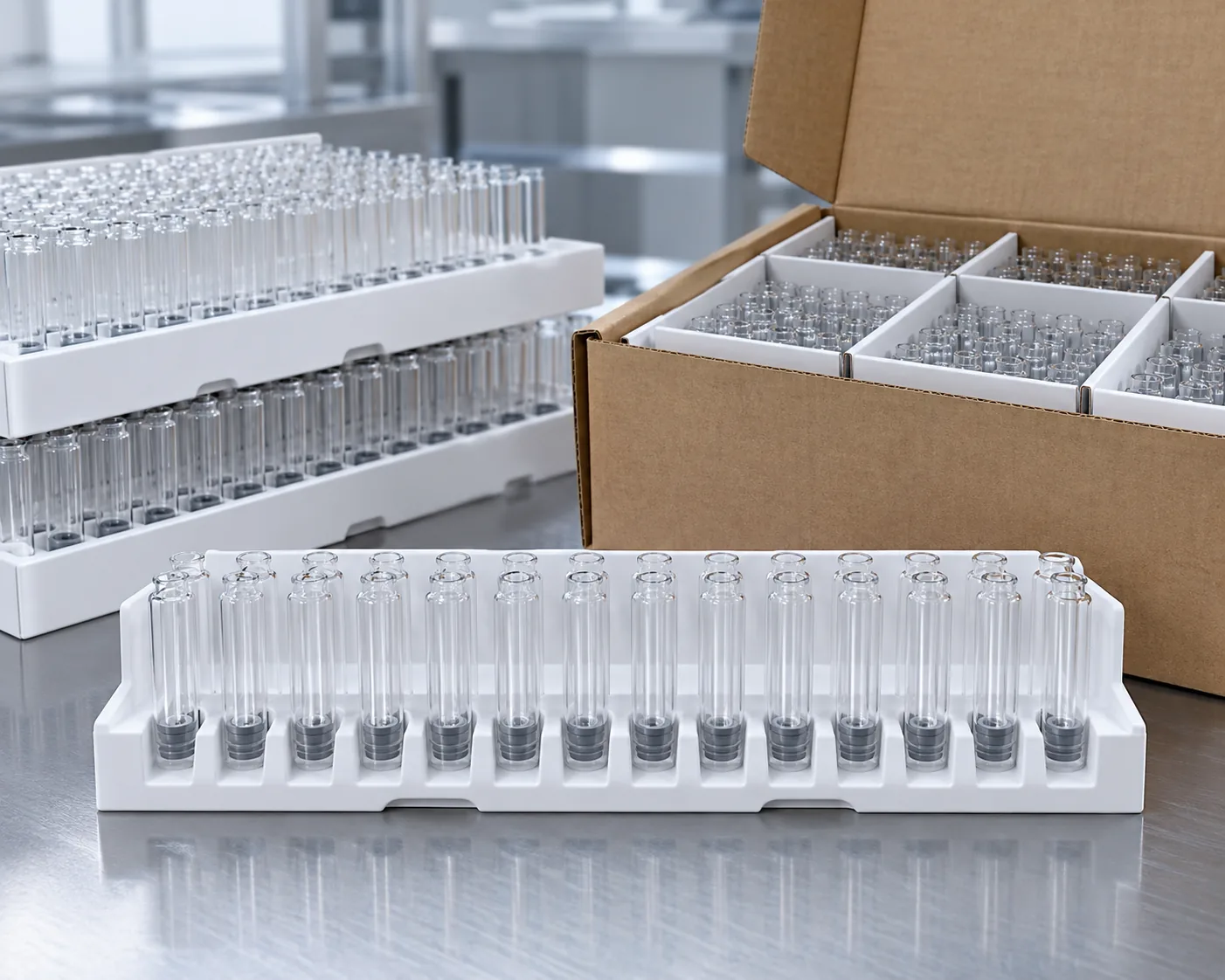

Packing Protective tray or factory-confirmed bulk pack

Need confirmed specifications for this pharmaceutical glass package?

Send the target capacity, glass class, closure system, filling process, documentation requirement and estimated quantity so the factory can confirm the correct SKU route.

Request a Custom Quote

Product Presentation

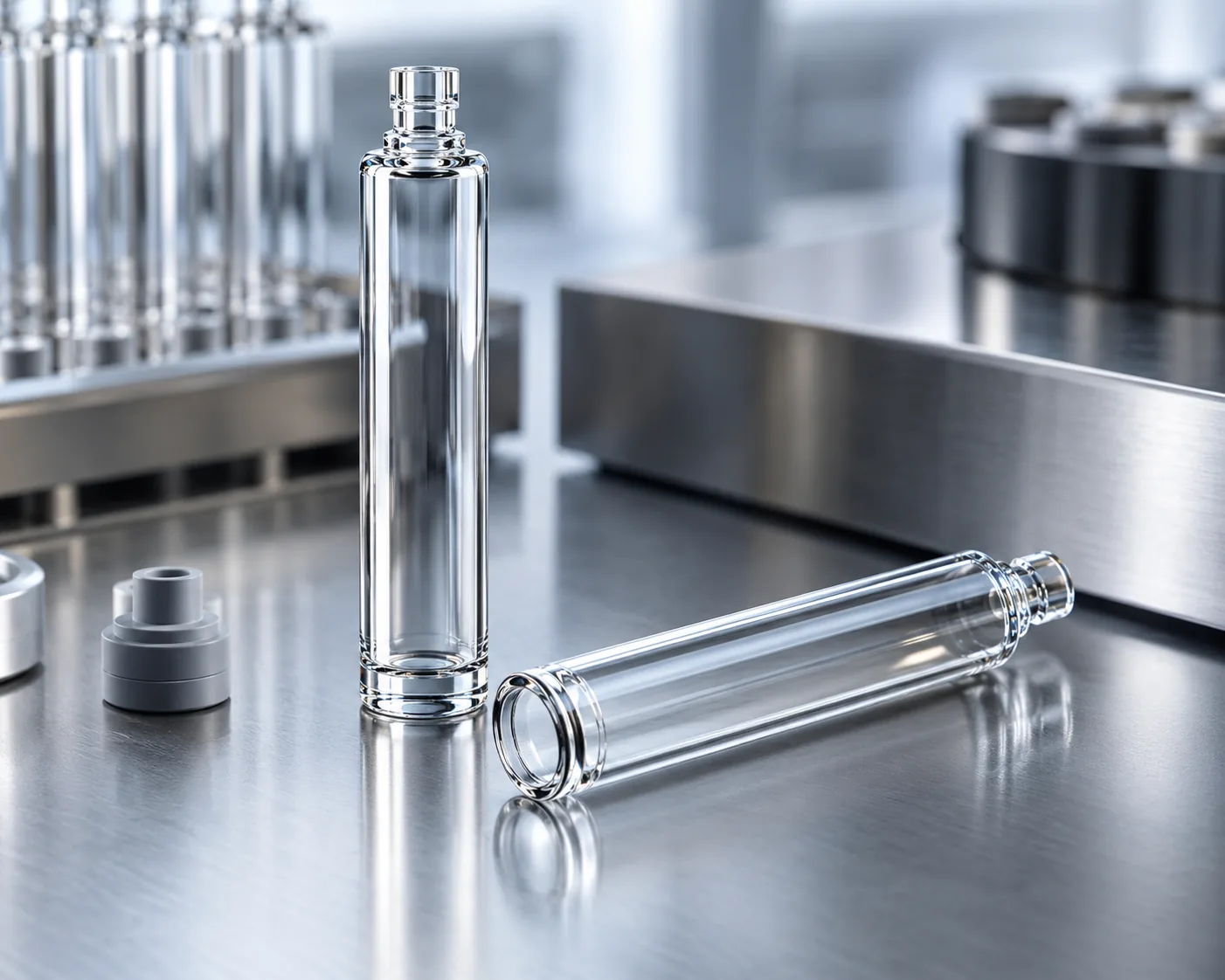

Cartridge dimensions, component interfaces, packing and device-fit inspection.

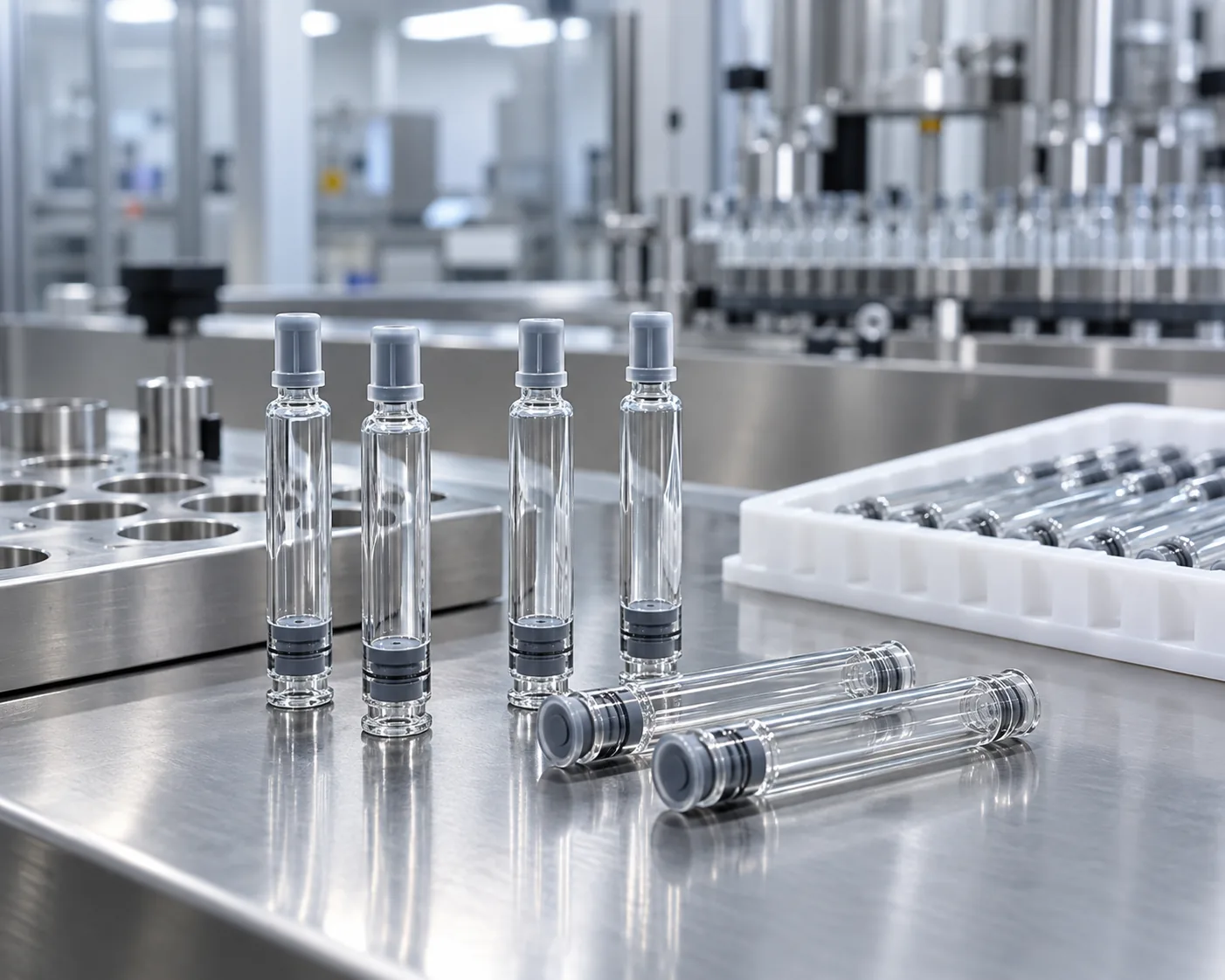

Cartridge Dimensions

Applications for This Product

Pharmaceutical and nutraceutical glass bottle packaging

Pharmaceutical & Nutraceutical

Reliable glass packaging for pharmaceutical, supplement, essential oil and wellness product applications. Uses amber glass protection, thread finish precision, capacity consistency control and closure fit testing for functional packaging applications.Helps solve sealing instability, poor cap compatibility, light-sensitive product protection and inconsistent batch quality.Recommended processing includes amber glass, CRC cap matching, silk screen printing, clean packaging, label surface matching and functional marking. Recommended Decoration: Amber Glass, CRC Cap, Clean Packaging, Silk Screen. Suitable Products: Vials, syrup bottles, packer bottles, essential oil bottles.

From Idea to Production

A practical six-step workflow connects early requirements, drawings, mold development, proofing and production delivery.

Packaging team reviewing custom glass bottle requirements with samples and drawings

Requirement Review

Sketches, samples, capacity, application and market positioning.

Engineer reviewing glass bottle structure with samples and measuring tools

Bottle Structure Design

Shape, capacity, wall thickness, bottom weight and neck finish.

Engineer reviewing 2D and 3D glass bottle drawings with prototypes

2D / 3D Drawing

Dimensions, bottle proportion and production feasibility review.

Technician inspecting custom glass bottle mold in machining workshop

Mold Development

Private mold planning, sample mold and production mold transfer.

Clean workshop for glass bottle checking and packing preparation

Sample Proofing

Confirm appearance, dimensions, closure matching and decoration effect.

Warehouse aisle with export cartons for glass bottle delivery

Mass Production & Delivery

Approved samples move into production, inspection and export packing.

Production & Export Support

Automated glass bottle production line inside packaging factory

Production Manufacturing

Quality Certificates

Clean packing workshop with workers preparing glass bottle cartons

Shipping Packaging
